FlyFishRC M10QMC-5883L GPS Module Compass
The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing.Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.
Specs:
- GPS module: FlyFishRC M10QMC-5883L GPS Module
- Frequencies: 72 channel
- Refresh Rate: 10 Hz
- Compass module: QMC5883L
- Baud Rate：4800bps-115200bps (Default - 9600bps)
- Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
- Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
- Cold start: <24s
- Hot start: <2s
- Maximum height: 50000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Input Voltage: 3.3V-5V，current 25mA
- Output Connector: SH1.0-6P
- Weight: 8.8g

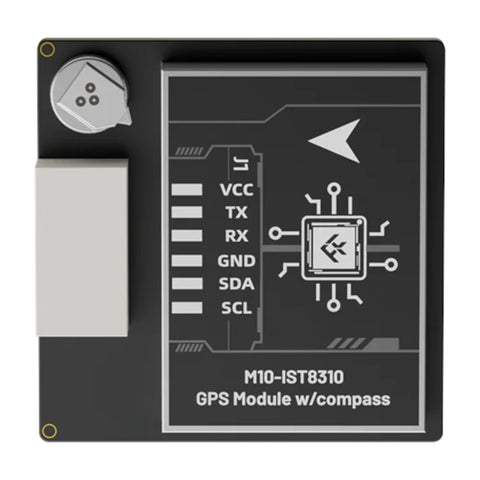

- GPS pin definition: RX/TX UART
- Compass pin definition: SDA/SLA
- GPS patch antenna size: 18 x 18 mm

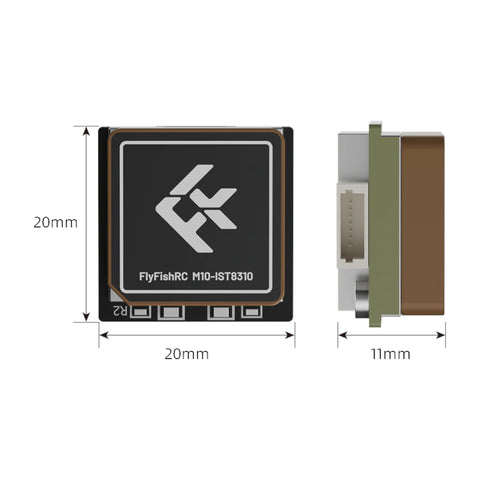

- Total dimensions：20 x 20 x 11 mm
Features:
- 72 channel 10 Hz Refresh rate
- Built-in TCXO crystal and farad capacitor for faster hot start
- High sensitivity 18x18mm GPS patch antenna
- SH1.0-6Pin terminal design, no soldering required.
- QMC5883L Magnetometer chip，Precise pointing
Includes:
- 1x FlyFishRC M10QMC GPS Module
- 1x SH1.0-6Pin Cable
- 1x SH1.0 Connector
- 1x GPS Manual
