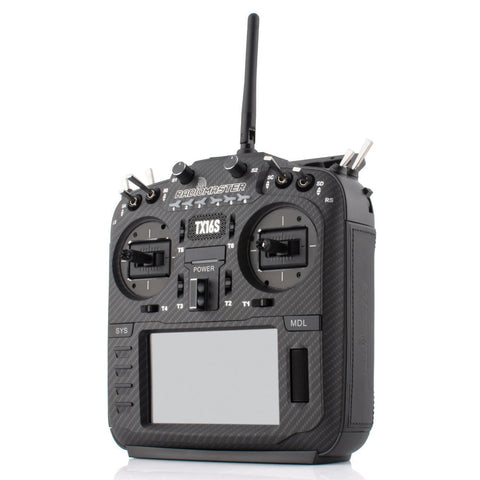

RadioMaster TX16S Mark II Max Radio Controller Transmitter

Protocol:

ELRS 2.4G

4IN1

Color:

Carbon Fiber Black

Carbon Fiber Red

Quantity

Featured Products

RadioMaster Bandit Nano ExpressLRS 915MHz RF ELRS 1W Module TX

ISDT K2 Air Dual Channel Smart Charger 2-6S AC DC 200w 500w 20A

SUNLU ASA 3D Printer Filament 1.75mm 1KG

iFlight XING2 2306 FPV Motor Unibell 4-6S 1755KV

TBS Crossfire Micro TX V2 Starter Set

TBS Crossfire Diversity Nano RX

Improved internal circuity and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.
Rear mounted audio jack provided headphone output.
V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
Optional high/low rear grips included for improved ergonomics.
Improved S1/S2 knobs with clear centre-detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Available ELRS and 4in1 versions.

Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: Option 1: V4.0 Hall sensor with Aluminium facia; Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
