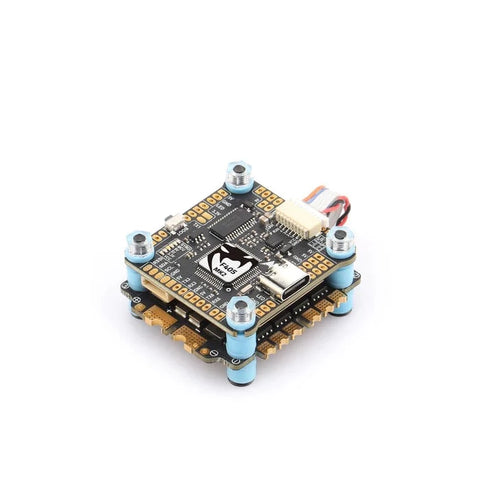

Diatone Mamba Stack F405 MK2 V2 DJI O3 Flight Controller + BLS 55A 3-6S ESC 30.5x30.5mm
Description
MAMBA F405MK2 V2 Flight Controller ICM42688P
- MCU: 168MHz STM32F405
- GYRO: ICM-42688-P
- Target : FURYF4OSD
- OSD: Yes
- Blacbox: 16M Flash Memory
- Barometer: No
- Uarts: 3 Set
- I2C: Yes
- F.Port: No
- RSSI: Yes
- Buzzer Pad: Yes
- CURR Pad: Yes
- ESC Signal: 4 Set
- ESC Soft: Dshot300/600
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller : BF LED
- AIR UNIT Port: Yes
- WIFI: No
- VTX Switch: No
- Receiver Protection: Yes
- BEC Protection: Yes
- TVS Protection: Yes
- BEC:3.3V 0.5A& 5V 3A& 9V 3A
- Input: 3~6S Lipo (12.6~25.2V)
- Mounting size: 30.5mm/M3
ESC Specifications
MAMBA F55_BLS
- Input voltage: 3~6S Lipo (12.6V~25.2V)
- Continue current:55A×4
- Burst current 55A (10S)
- BEC: No
- Target : BLHeli_S CH40
- SOFT: Dshot300/600
- TVS Protection: No
- MOUNTING: 30.5mm/M3
