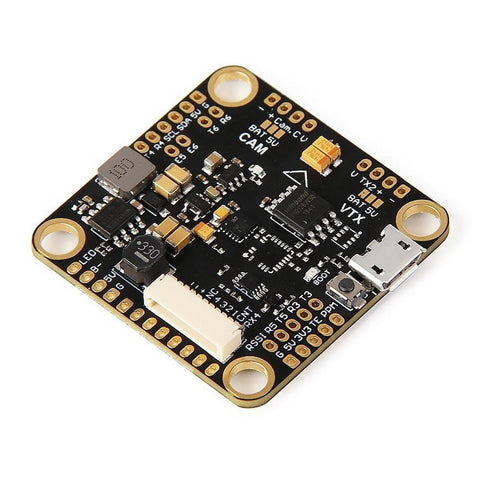

T-Motor F4 Flight Controller 30.5x30.5mm
The T-Motor F4 Flight Controller comes with an LC filter, which is great for eliminating interference to your VTX or other equipment. Equipped with a 5V/2A BEC allows hooking up of receivers, cameras, and other 5v compatible gear. The F4 is loaded with 6 UARTs and is specially optimized to fit the F55A PRO II ESC. The user also has the choice of two gyros - the ICM20602 for high refresh rates or the MPU6000.
Â
Specifications
- Input Voltage:Â 2-8S (8.4-33.6V)
- MCU:Â STM32F405RGT6
- IMU:Â ICM20602
- OSD:Â Yes
- Blackbox:Â 16MB Onboard Flash
- UARTs:Â 6
- ESC Connections:Â 6
- Firmware:Â BetaFlight Target: TMOTOR F4
- BEC:Â 5V 2A
- LC Filter:Â Yes
- Current Sensor:Â Esc Telemetry / Current ADC
- Buzzer:Â Pads
- Barometer:Â No
- Dimensions:Â 37x37x7mm
- Mounting Pattern:Â 30.5x30.5mm
- Weight:Â 7g
Â
Includes
- 1x T-Motor F4 Flight Controller
- 2x FC to ESC Cable
- 4x Vibration Dampeners
