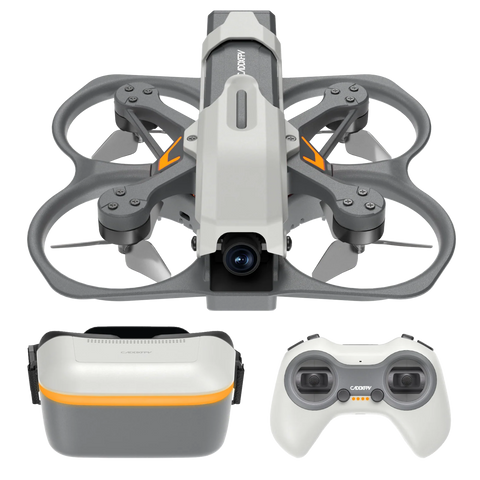

CADDX PROTOS Digital HD FPV Drone RTF Kit
Specifications
| PROTOS | FC | VTX | |||||
| Flight Control | Caddx Protos Aio 1.0 | Main Control Chip | STM32-F405RGT6 | VTX Model | Ascent Lite | ||
| Video Transmission | Ascent Lite | Gyroscope | BMI270 | Image Sensor | 1 / 2.8 inch Sensor | ||
| Motor Diagonal Distance | 78mm | Barometer | SPL06 | FOV | 147° | ||
| Motor | 1102 14000KV | Onboard Receiver | ESP8285 | Ratio | 16:9 | ||
| Propeller | HQprop U40mm×3GR-PC-1.5mm | Receiver Protocol | ELRS 2.4GHz | Resolution | 1080P 60FPS;720P 60FPS | ||
| Weight | 104.4g±1.5g | ESC Protocol Compatibility | Bluejay / BLHeli-S Optional | Built-in Storage | N/A | ||
| Dimensions | 110x102.8x41mm | ESC Maximum Current | 12A (Single Channel) | Max Transmission Range | Max 3km | ||
| Flight Endurance | 8.5min ±0.5min | Latency | Average delay 35ms | ||||
| RC Receiver | ELRS 2.4GHz | Power | 25~100mW |
| Ascent Goggles | |
| Communication Frequency | 5.725-5.850GHZ |
| Transmit Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot |
| Transmission Resolution | 1080P60FPS, 720P60FPS |
| Code Rate | Max 50 Mbps |
| Minimum Latency | Average 32ms |
| Average Gain | 4.9dBi |
| Polarization | LHCP |
| Transmission Distance | >4km |
| Channel | 8 |
| Screen Resolution | 1920*1080 / 60Hz |
| Screen Material | LCD |
| Screen Size | 4.5 Inch |
| Wide Voltage Input | 6V~25.2V (2S~6S) |
| SD Card Slot | Support 256G |
| CADDXFPV Alink | |
| Main Control Chip | AT32 F413RCT7 |
| RF Module | ELRS 2.4GHZ |
| RF Protocol | CRSF |
| Max RF Power | 100mW (20dB) |
| Number of Available Channels | 10 Channels (including 4 joystick channels) |
| Joystick Type | Full-Bearing Hall-Sensor Joystick Assembly |
| Function Switch | 1 x Latching Button / 2 x Momentary Buttons / 2 x 3-Position Toggle Switches / 1 x Scroll Wheel |
| Status Indicator Module | 4 x Status Indicator LEDs / Buzzer |
| Charging & Communication Interface | USB-Type C |
| Battery Specification | Lipo 1s 1000mAh |
| Max Charging Power | 5V / 1A / 3.50W |
| Operating Voltage Range | DC 3.50V~4.20V |
| Dimensions | 158mmx108mmx58mm |
| Weight | 180g±5g |
| 2S Charger | 2S Battery | |||
| Name | 2S Charger | Name | 2S Battery | |
| Display | LEDx4 | Battery Type | Li-ion (Lithium-ion Battery) | |
| Channel | 3 (Sequential Charging) | Battery Capacity | 840mAh | |
| Function Selection | Charging, Storage | Battery Specification | 2S1P (2 Cells in Series, 1 in Parallel) | |
| Battery Type | Li-ion 2S 840mAh Battery | Discharge Rate (C-Rate) | 15C | |
| Input Voltage | 12‒15V (PD Input, 5V Adapter Not Supported) | Maximum Power | 6.384Wh | |
| Output Voltage | 8.7V | Voltage Range | 6.80V~8.70V | |
| Input Current | Max.3A | Max Charging Voltage | 8.5V | |
| Charging Current | Max.3A | Charging Method | 2S Charger | |
| Balancing Current | Max.0.21A | Charging Time | ≤20min | |
| Charging Power | Max.25W | Protection Mechanism | When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate |
|
| Discharging Power | Total Power: 5W (Max 1.6W per Channel) | Dimensions | 77.5x24x21mm | |
| Interface | Type-C | Weight | 41.9g±0.5g | |
| Operating Temperature | -10~45℃ | |||
| Storage Temperature | -20℃~60℃ | |||
| Dimensions | 94x63x39.1mm | |||
| Weight | 65±0.5g | |||
*For more product information, please refer to the user manual.
