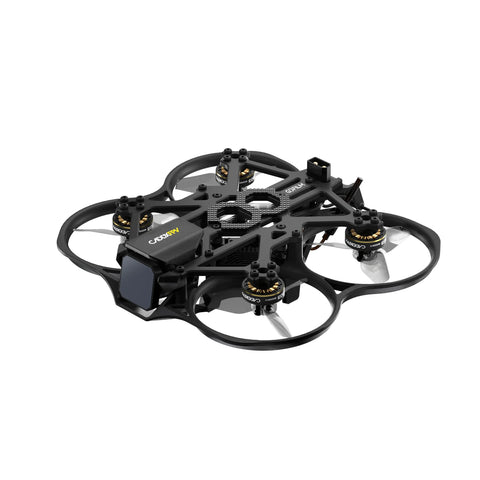

CADDX GOFILM 20 WalkSnail Moonlight 2 Inch CineWhoop FPV Drone ELRS
Gofilm 20 Parameters |
|
| Model | Gofilm 20 |
| FC | CADDXF4_AIO_ELRS |
| VTX | Moonlight Kit |
| Wheelbase | 94mm |
| Motor | 1303 6000KV |
| Propeller | HQprop T2×2×3 |
| Weight | 115±5g |
| Size | 133×123×39mm |
| Flight time | 4S 650mAh & about 5.5 minutes |
| Receiver | ELRS 2.4G |
| Battery interface | XT30 |
FC Parameters |
|
| MCU | STM32F405RGT6 |
| GYRO and IMU | ICM42688 |
| Barometer | BMP280 |
| ExpressLRS receiver | ELRS V3.0 UART |
| ESC | 20A 4-IN-1 |
| Blackbox | 8MBp |
| Support Power | 2~4S Lipo/Lihv |
| Mounting hole Distance | 25.5×25.5mm |
| Firmware target | CADDXF4_AIO_ELRS |
VTX Parameters |
|
| Model | Moonlight Kit |
| Firmware name | AvatarMoonlight_Sky_X.X.X |
| Communication Frequency | 5.725-5.850 GHz |
| Transmitter Power (EIRP) | FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm |
| I/O Interface | JST1.0*4(power cable); JST0.8*6(USB)；microSD Card Slot; IPEX-1 |
| Sensor | Starlight sensor |
| FOV | Max 160° |
| Aperture | F2.1 |
| Shutter | Rolling shutter |
| ISO | 100-25600 |
| Recording resolution | 4K@30/60fps; 2.7K@30/60fps; 1080p@100/60fps; 720p@60fps |
| Max Mbps | 150Mbps |
| Video format | MP4 (H.264) |
| 3D DNR | Support |
| Gyro flow | Support |
| Built-in EIS | Support |
| Wide Power Input | 7.4V-25.2V |
| Power consumption | 12V@1.4A, 8V@2.2A |
| Memory card type | U3 microSD, Max 256G |
| camera size | 19.6mm×19mm×24mm |
| VTX size | 15.3mm×34.5mm×34.5mm |
| VTX Installation hole | 20×20mm/25×25mm (M2) |
| Weight | 38.5g (Antenna not included) |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2 (IPEX) |
Package
- 4x M2*6mm
- 4x M2*8mm
- 1x 1.5mm Allen wrench
- 1x usb data cable
- 1x 180mm strap
- 1x paddles
- 1x Micro usb data cable
- 1x Instruction manual
Preface About Gofilm 20
With the rapid development and continuous growth of the FPV industry, based on market feedback and the efforts of our R&D team, we have launched a brand new product - the Gofilm 20. As the first FPV drone from CaddxFPV, it mainly meets the needs of most pilots and the first 4K starlight drone in the market.
Equipped with the Avatar Moonlight Kit, the Gofilm 20 brings more possibilities to pilots, shooting stable and HD videos without unnecessary latency, making it easy to capture cinema-quality images whether day or night, redefining - HD FPV.
Compact and Delicately Design
Gofilm 20 features a lightweight design, occupying a smaller footprint and weighing about 115g, ensuring agile flight and extended endurance. With a 94mm wheelbase and a robust propulsion system, light but fast.
HD Digital VTX System
- Standard with the moonlight kit, it offers enhanced image quality and low-light performance for night-time shooting.
- Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.
- Equipped with EIS and Gyroflow technology. Supports manual shutter and manual ISO settings.
- The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.
- Additionally, the 25.5mm and 20mm mounting hole designs accommodate various accessories.
Gofilm 20 Frame Kit
The frame features a 94mm wheelbase, with damping design for the camera, ensuring smoother video recording. Utilizing integrated injection molding technology, it simplifies installation by eliminating the hassle of adjusting screw tightness. Built-in XT30 plug design to avoid damaging wires. The standalone frame weighs only 30.5g, offering durability, crash resistance, and heat resistance. Compatible with most analog and HD VTX systems.
Flight Controller
The GOFILM 20 comes equipped with an AIO flight controller integrated with ELRS receiver, the power system meets 2-4S.
Powerful Propulsion System
Featuring 1303 6000KV motors, tailored for the Gofilm 20, offering the perfect synergy with 2-inch propellers. With a recommended 650mAh battery, enhancing operational feel, with a flight time of up to 5.5 minutes, allowing uninterrupted capture of stunning aerial footage. Elevate your flight experience to new heights with the Gofilm 20.
The Gofilm 20 is not only suitable for indoor and outdoor flights but also excels in various scenarios such as competitions and professional filming. Its versatility allows you to experience a wide range of flying environments, enhancing your overall flight experience.
