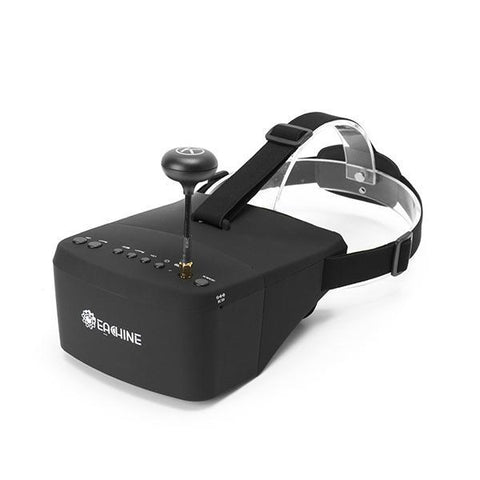

Eachine EV800 FPV Goggles 800x480 5 Inch 40 Channel Raceband Auto-Searching Build In Battery

Eachine EV800 5 Inches 800x480 FPV VR Goggles Monitor 5.8G 40CH Raceband Auto-Searching Build In 2000 mAh Battery Note: The goggles upgraded version with the face sponge and  AV IN function. The Headphone jack was changed to 3.5mm. The total weight reduction of 26g.

Specification

Item No. EV800
Screen
Screen size: 5.0 inch
Screen resolution: 800*480 (No blur after enlarging by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 140/120 degree(Horizontal/Vertical)

Lens
3x boost of the video to acquire intense feel-in-there video;
92% transparent rate no distort of light;

Battery and recharge
Built-in 3.7V/2000mAh battery;
Each battery circle offer around 3.5hr working time;
5-12V wide recharging voltage range, typical recharging voltage is 5V
Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time

Receiver
Build in 5.8G 40CH Raceband receive

Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5771 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917
Body
Dimension: 180x145x82mm
Weight: 349g with 3.5hr 2000mAh battery
Belt: three-ways adjustable belt



Feature:

  • With comfortable face sponge and AV IN function;
  • Separable design, the 5-inch screen can be used as a small monitor on a radio controller or with a tripod;
  • HD high brightness 5inch LCD specially tuned for FPV racing;
  • Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
  • Come with advanced auto-searching function and show you the working frequency on the screen;
  • Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time;
  • Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as backup power sour, to prolong the working time;
  • The ergonomic design fit your faces;
  • Super-wide visible angle up to 82 degrees;
  • 92% transparent lens adopted, no distort, no blur on the adage of the screen;
  • Lightweight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
  • 5 inch 800*480px HD high brightness LCD


Package Included:

  • 1x EV800 FPV VR Goggles (Built-in 3.7V/2000mAh battery)
  • 1x Mushroom Antenna
  • 1x USB charger cable
  • 1x Battery charger cable
  • 1x AV IN cable
  • 1x User Manual
  • 1x Clean cloth
  • 1x Bag
