FrSky XM+ SBUS Micro Receiver

  • $33.00

FrSky XM+ SBUS Micro Receiver


  • Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.
  • If you have none frsky transmitter, please downgrade the version lower than 2.X.X, for more details.

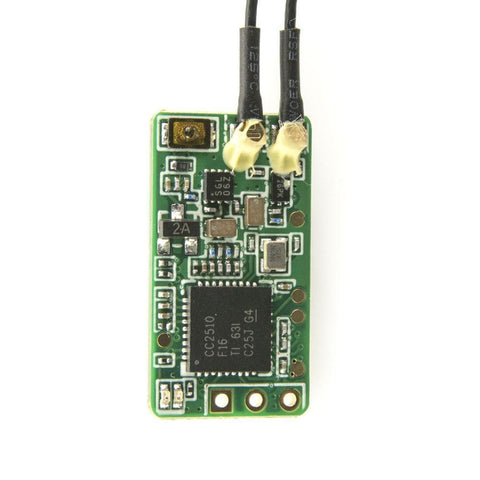

    FrSky XM+ Ultra Micro SBUS Receiver, ONLY 1.6g


    • Dimension: 21.5x12x3.5mm(LxWxH)
    • Weight: 1.6g
    • Number of Channels: Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC)
    • Operating Voltage Range: 3.7~10V
    • Operating Current: 30mA@5V
    • Operating Range: FULL range
    • With RSSI output on board: Analog 0~3.3V
    • Firmware Upgradeable
    • Compatibility: FrSky D16 mode
    • No Telemetry



    • 1x FrSky XM+ SBUS Micro Receiver
