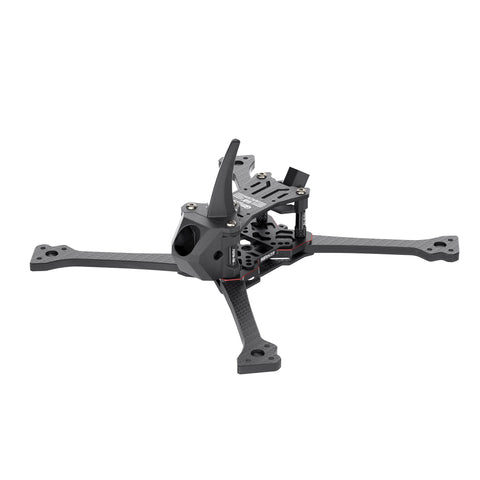

GEPRC Racing 5 Inch GEP-Racer FPV Drone Frame Kit

When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing frame specially designed for the competition. The GEPRC Racer was thus born.

The Racer frame combines the 7075-T6 aviation aluminum alloy splint and the high-grade T700 carbon plate CNC processing, and the overall structure is solid. 20*20mm/25.5*25.5mm/30.5*30.5mm flight controller can be installed, and the motor mounting hole is 16*16mm.

Feature

1. High-strength 7075 aviation aluminium alloy splint
2. T700 carbon fibre plate material
3. Design shark fin support, easy to flip over after a crash.
4. Quick-release design of the arm is convenient for maintenance.
5. 25.5mm*25.5mm M3 screw FC hole, matching the newest GEPRC 25.5MM stack.
6. Compatible with HDZero VTX

Specification:

• Model: RACER FPV Frame
• Frame: GEP-RACER Frame
• Dimensions: 175mm×173mm
• Wheelbase: 208mm
• Top plate: 2.0mm
• Aluminum plate: 2.0mm
• Bottom plate: 2.0mm
• Arm thickness: 5.0mm
• Aluminium column size: M3*6*24mm
• FC mounting hole: 30.5mm*30.5mm/25.5mm*25.5mm/20mm*20mm
• VTX mounting hole: 20mm*20mm
• Motor mounting hole: 19mm*19mm
• Camera installation space: 14mm
• Propeller: 5 inches
• Weight: 78g±2g

Includes

• 1x Top plate
• 1x Bottom plate
• 1x Aluminum plate
• 1x Camera mount
• 1x VTX antenna mount
• 1x Shark fin print
• 4x M3*6*24mm aluminium column
• 2x 20*250mm battery cable ties
• 2x Battery anti-skid pads
• 1x Screw pack
• 1x L-shaped screwdriver 1.5mm
• 1x L-shaped screwdriver 2mm
