HappyModel Mobula6 2024 V3 1S Micro FPV TinyWhoop ELRS 2.4G
*Compatible Battery BETAFPV 300mAh 1S BT2.0
Features:
- Come with New CrazyG473 AIO flight controller
- Happymodel New 1200TVL Nano5 camera
- Super light 1S 65mm Brushless whoop only 17.6g
- Equipment with the lightest brushless motors-SE0702 only 1.46gram
- Smooth and powerful
- Built-in Serial ELRS receiver
- Built-in Power max to 400mw openVTX
Specifications:
- Brand Name: Happymodel
- Item Name: Mobula6 2024 V3 1S 65mm ultra light micro FPV Whoop
- Wheelbase: 65mm
- Size: 81mm*81mm*37mm

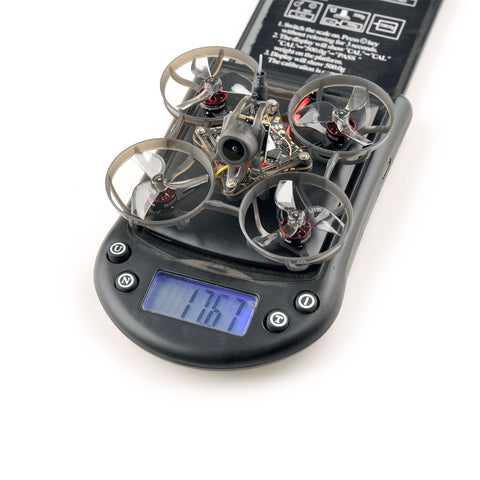

- Weight: 17.6g
Receiver option:
- 2.4GHz ExpressLRS Serial receiver
|
|
Mobula6 2024 V3 |
Mobula6 2024 V2 |
|
Flight controller |
CrazybeeG473 |
SuperX ELRS V2.0 |
|
Firmware target |
Betaflight 4.6 CrazybeeG473 |
Customized STM32F411 |
|
Built-in ExpressLRS receiver |
Serial ELRS 2.4GHz |
Serial ELRS 2.4GHz |
|
Built-in Dshot ESC |
5A |
5A |
|
Receiver antenna plug |
Enameled Copper wire |
Enameled Copper wire |
|
Onboard VTX power |
25mw~400mw |
25mw~400mw |
|
Brushless Motor |
0702 KV28000 no plug |
0702 KV28000 with plug |
|
Propeller |
Gemfan 1208-3 tri-blade |
Gemfan 1208-3 tri-blade |
|
Battery plug |
A30(compatible with BT2.0) |
A30(compatible with BT2.0) |
|
Frame |
Mobula6 2024 frame 2.76gram |
Mobula6 2024 frame 2.76gram |

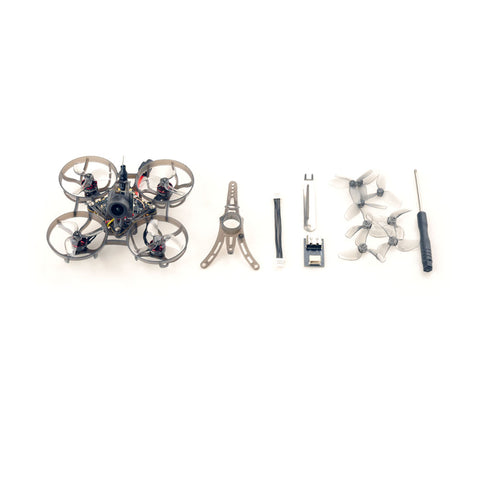

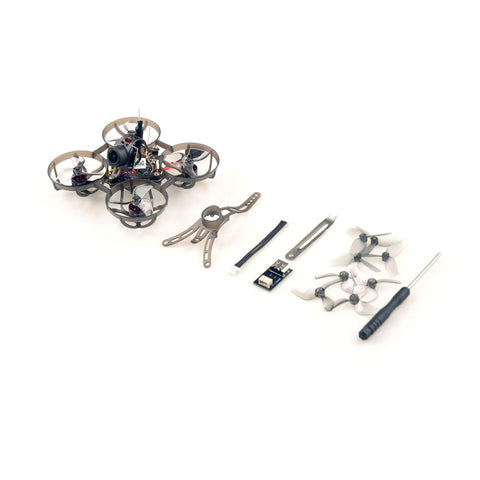

Package includes:
|
Item Name |
Qty |
|
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy |
1 |
|
CrazybeeG473 AIO 5-IN-1 Flight controller |
1 |
|
SE0702 KV28000 brushless motor |
4 |
|
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw) |
1 |
|
HQPROP ultralight whoop prop 1.2x1.1x3(2cw+2ccw) |
1 |
|
Nano5 1200TVL camera NTSC 4:3 |
1 |
|
Onboard 5.8G 25mw~400mw VTX |
1 |
|
Spare canopy |
1 |
|
Propeller disassemble tool |
1 |
|
Screw driver |
1 |
Spare parts specifications:
|
Motor |
Mode: SE0702 KV28000 no plug version |
|
Propellers |
Materials: PC Inch: 31mm Pitch: 0.8 in Weight: 0.21g Mount hole diameter: 1mm |
|
Flight controller |
MCU: STM32G473CEU6 Gyro: ICM42688P Sensor: Voltage & Current BEC: 5V, Max. 2A UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) BetaFlight OSD: AT7456E ESC: 5A continuous RX: Serial ELRS 2.4GHz RX antenna: Enameled copper wire 31mm length Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX OPENVTX: 5.8GHz 48 channels, Max. 400mW FC firmware target: CRAZYBEEG473 USB port: SH1.0-4Pin Battery connector: A30 Mounting hole size: 25.5mm x 25.5mm Weight: 3.83g without pigtail and vtx antenna |
|
Onboard 4in1 ESC |
Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Firmware target: A_X_5_96KHz Recommend ESC Startup power value to min1100/max1200 |
|
Onboard Serial ExpressLRS receiver |
Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 Antenna : Enameled copper wire antenna Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx |
|
Onboard 5.8g VTX |
OPENVTX Firmware Support firmware upgrade by openvtx configurator Output power: PIT/10/25/100/400 Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.1 Modulation type: FM Operating temperature: -10℃~+80℃ Antenna port: IPEX1/U.FL |
|
Nano5 Camera |
Image Sensor: 1/3" CMOS Horizontal Resolution: 1200 TVL Lens: 2.1mm (M10) 155° FOV TV System: NTSC Signal-to-Noise Ratio: >52dB Electronic Shutter: Auto Automatic Gain Control (AGC): Auto Minimum Illumination: 0.001Lux@1.2F Digital Wide Dynamic Range: Auto Power Supply: DC 3-5.5V Current: 110mA@5V 120mA@3.3V House Material: ABS Net Weight: 1.57g (1.0mm plug version) |
