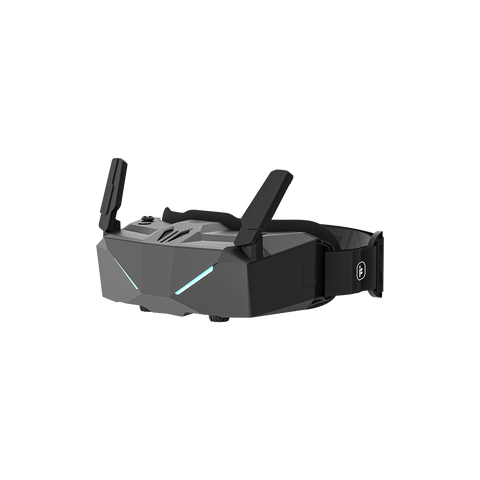

The Skyviz Goggles are the first mecha-style, highly integrated FPV Analog goggles with a built-in fusion receiver and foldable antenna design, offering a compact and ergonomic layout.

Supporting third-party HD video receivers with a dedicated mounting bracket, these goggles ensure compatibility and flexibility. The minimalist UI and intuitive controls enhance the user experience, while dual Micro-OLED displays (100Hz refresh rate) deliver ultra-smooth, crystal-clear visuals.

Featuring a 7-element aspherical lens system, the Skyviz Goggles provide sharp, distortion-free images with no screen-door effect, adapting seamlessly to any diopter setting for unparalleled immersion.

Uncompromised Visual Performance

Engineered with dual 100Hz Micro-OLED displays and a 7-element aspherical lens system, the goggles deliver stutter-free, high-fidelity imagery with zero screen-door effect. Customize your view with diopter adjustment (-7D to +2D) and IPD tuning (56-72mm) for universal comfort.

Modular Receiver & Input Flexibility

 It uses an integrated receiver for high-quality image transmission and also supports third-party receivers. Compatible with VRX, AV, and HDMI input modes, it adapts to various usage scenarios.

Customizable Display Settings

Tailor visuals with Race/Freestyle FOV modes, focus chart-assisted calibration, and granular image settings (brightness/contrast/color/sharpness). Toggle between 16:9 and 4:3 aspect ratios to match your feed.

Enhanced Usability Features

The DVR recording and playback function with adjustable settings, voltage display and calibration, and a multilingual interface in Chinese and English improve practicality.

Comfort & Customization

Manual control of the fan switch and speed provides comfort during long-term use, and the option to customize LED colors adds a personalized touch to the goggles' appearance.

• Product Name: Skyviz Analog Goggles
• Weight: Approx. 300grams（headband included）
• Dimensions (L×W×H): L174.5 * W101.6 * H69.5mm(Antenna folding)
• Screen Size (single screen): 0.49-inch
• Resolution (single screen): 1920×1080
• Refresh Rate: 100 Hz(Max)
• Interpupillary Distance Range: 56-72 mm
• Diopter Adjustment Range: -7.0 D to +2.0 D
• FOV (single screen): 44°
• Aspect Ratio: 16:9/4:3
• Receiver: Built-in receiver
• Language: Chinese and English
• Power interface: DC4.5
• HDMI-IN: Micro HDMI
• AV-IN 3.5mm
• Headphone jack: /
• DVR format: MP4
• DVR frame rate: 30FPS (CVBS)
• Antenna: Omnidirectional linear polarization antenna
• Operating Temperature Range: -10°C to 40°C (14°F to 104°F)
• Power Input: 2-6S
• Supported SD Cards: microSD (up to 64 GB)

• 1x Skyviz Goggles
