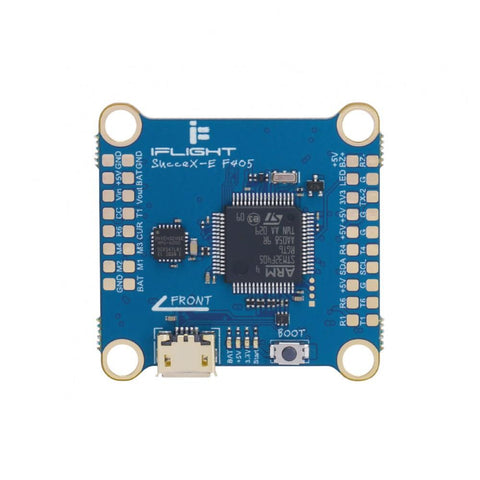

iFlight SucceX-E V2.2 F4 2-6S Flight Controller MPU6000 30.5x30.5mm

  • $92.00



iFlight SucceX-E V2.2 F4 2-6S Flight Controller MPU6000 30.5x30.5mm


PRODUCT DESCRIPTION

Specifications:

  • MCU:STM32F405
  • Gyro:MPU6000
  • Baro: NO
  • Betaflight OSD:IFLIGHT OSD (AT7456E)
  • Blackbox:16MB(W25Q128)
  • 4X Uarts
  • UART1  VTX HD(for 4-6S Vista,for 4S DJI Air Unit)/Analog Telemetry
  • UART2  Receiver
  • UART4  Vacancy
  • UART6  ESC Telemetry
  • 1×12C
  • 1×SH1.0 10pin connector for ESC(GND/GND/BAT/BAT/M1/M2/M3/M4/CUR/R6)
  • 1x SH1.0 6pin connector for Receiver(3.3V/RT2/5V/GND/R2/T2)
  • 1x SH1.0 5pin connector for VTX/Vista(RX1/TX1/GND/VBAT/VO)
  • 1x SH1.0 4pin connector for Camera(5V/GND/VI/NC)
  • 1x SH1.0 4pin connector for LED&Buzzer(5V/GND/LED/BZ-)
  • 1x SH1.0 4pin connector for Free (TX4/Rx4/GND/5V)
  • 4×0201 LEDs for FC STATUS (Blue, Red,Orange ) and 3.3V indicator(Red)  BAT/+5V/3.3V/star
  • WS2812 led Strip:YES
  • Baro: BMP280(I2C)
  • Beeper:YES
  • Input:2-6S(Max 8S)
  • BEC:5V / 3A
  • Firmware: IFLIGHT_BLITZ_F405
  • Mounting:30.5*30.5/φ4
  • Dimensions:36*36mm
  • Weight:7.3g


Package Included:

  • 1x SucceX-E F4 V2.2 Flight Controller
  • 1x Wire harness


NOTE: F.PORT protocol RX input support, telemetry not supported.
